F Lathe -33mm (1-5/16") Bore

Price:
*
F11-111
F053 STD   ($21,990.00)
F053 COAX   ($23,300.00)
Description:
General Features Precision Alignment Infinitely variable speed spindle drive, On/Off, speed and direction controls Jog button (Except on Model F053) Sockets to accommodate remote control devices, and switch for tailstock spidle On/Off Lathe bed scales Seals on lathe spindles that make it possible to apply air pressure to the work Optional swivel/stop system used to deliver both pressure and vacuum directly to the work, accommodating different sized stops Standard rack-and-pinon firecarriage burner bracket (Models F053 & U077 only)
Additional Information:



 F LATHE SPECIFICATION

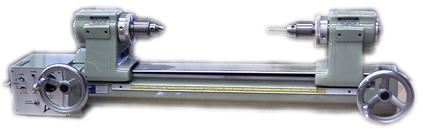

The Model F is the smallest of the fine quality, precision aligned Litton Lathes. The standard machine includes an infinitely variable speed drive. This is a very efficient DC motor coupled to the drive shaft by a small timing belt.

Lateral movement of tailstock and firecarriage are by sprocket and chain, with the controlling handwheels remaining in a fixed position. The F Lathe is equipped with a rack and pinion firecarriage burner bracket which allows convenient vertical adjustment of the burner assembly for proper positioning. A lathe bed scale is also standard.

Accessories must be ordered separately. Additional information on individual accessories which are listed can be obtained under each accessory's respective catalog listing. For information on burners and paddles, refer to the Burner section of the catalog.



 A = Spindle bore diameter
 B = Maximum spindle nose to spindle nose distance
 D = Radial clearance above heat shield
 E = Radial clearance above T-slot firecarriage cover
 F = Length of spindle
 G = Firecarriage travel distance
 H = Overall height
 J = Overall length
 K = Overall width
 L = Weight / Shipping weight



F053
A =
mm 33
Inches 1-5/16
B =
mm
527 Inches
20-3/4
D =
mm
102 Inches 4
E =
mm 89 Inches 3-1/2
F =
mm 152 Inches 6
G =
mm
425
Inches 16-3/4
H =
mm 292
Inches 11-1/2
J = mm
1067
Inches
42
K =
mm
356
Inches
14
L =
~kg 47/77
Inches 104/170
Spindle speed range 20 to 400rpm. Electrical supply required 100-240V AC, 50-60 Hz single phase Voltage required must be specified at time of order





A = Spindle bore diameter
B = Maximum length (Spindle nose to spindle nose)
D = Radial clearance above heat shield
E = Radial clearance above T-slot FC
Dimensions in millimeters



 F LATHE 33mm (1-5/16") Bore
 Part Number
 Model Number
 A  B  D  E  List Price
 F11-111 FO53 STD
33
527
102
89
 $16,990*
 F11-211 FO53 COAX
33 527
 102 89
$18,900*

 *Pricing is for raw lathe only (no accessories and/or options)

All prices as of February 1, 2020 and are subject to change without notice!



FIRECARRIAGE OPTIONS
 Part Number
 Description  Unit Price
 9071-01 F Lathe Firecarriage with Rack & Pinon
$1,305
9572 T-Slot Firecarriage Cover $875
 Prices checked on February 1, 2020 and are subject to change without notice!



LATHE BENCH OPTIONS

The plumbed bench has a stainless steel top and a black backboard. It is equipped with manifolds for gas, air, and oxygen with separate cutoff valves for the lathe, the gas-oxygen hand torch and an air-gas annealing burner. The basic bench is not plumbed and has no backboard.

 Part Number
 Description  Unit Price
9043-03 FO53 Plumbed Bench Mounted
$4,500
9043-13 FO53 Basic Bench Mounted
$1,500
 Prices checked on February 1, 2020 and are subject to change without notice!



F LATHE CHUCK OPTIONS

Chuck measurements listed below reflect their potential based on the dimensions of the F Lathe. Maximum measurements for all chucks, regardless of the lathe on which they are used, are listed in section 3 of the catalog. For the following chucks: C=Clockwise Close, CC=Counter Clockwise Close.

 Part Number
 Description  Unit Price
9270
Drill Chuck, 1/32" - 1/2", 1mm 13mm capacity
$530
9421 Drill Chuck, 3/16" - 3/4", 5mm 19mm capacity
$865
9429
Drill Chuck, 3/16" - 1-1/32", 5mm 26mm capacity

$1,055


90009-01
Scroll, 4" Bison Chuck, CCW, 32mm bore diameter, 0mm 60mm capacity
$1,475
90014-01
Scroll, 4" 6-Jaw Bison
$2,075
97121-01
LSC032 Scroll Chuck C, 32mm bore diameter, CCW Close, 1mm 38mm capacity
$1,475
97122-01
1mm 38mm capacity $1,475

9781-01
LAC033 Automatic Chuck, Air Acutated, 33mm bore diameter, requires 9796 or 9797 2 18 & 15 35mm capacity $4,395
9796 Foot Pedal Actuating Switch for air actuated chucking devices
$430
9797 Hand value actuating switch for air actuated chucking devices
$395
9898
FC Planetary, FC 3-Jaw Chuck, 33 mm bore diameter 3mm 142mm capacity, standard arm rods are 51mm in length
$1,900
4467 102 mm arm rods for FC Chuck, order 3 each
N/A
80481 102 mm arm rod option for FC chuck
N/A
 Prices checked on February 1, 2020 and are subject to change without notice!



VALVES & FOOT PEDAL OPTIONS

Model numbers Listed in Red Text are for valves and foot pedal mechanisms which are installed to a bench, model numbers Listed in Black Text are for valves and foot pedal mechanisms which are not installed.

 Part Number
 Description  Unit Price
9051-01  Gas-Oxy Proportioner Valve, Installed
$3,500
9051 Gas-Oxy Proportioner valve, for all bench models
$2,700
9311-02
Foot Pedal Mechanism Installed (for 9051)
 $1,300
9311 Foot Pedal Mechanism (for 9051)
 $700
Piston type gas-oxy proportioner, volume control valve
9059-01 Small proportioner valve
N/A
9059 Small proportioner valve
N/A
9060-01
Large proportioner valve
N/A
9060
Large proportioner valve
N/A
Rotary Cock spindle air and vacuum control valve
9064 Spindle control valve
N/A
9061
Spindle control valve
N/A
Foot Pedal mechanisms for two preceding valves
9393 For both valves
N/A
9394
For proportioner valve only
N/A
9395
For spindle control valve only
N/A
9318
For Both Valves
N/A
9320
For proportioner valve only
N/A
9321
For spindle control valve only
N/A
 Prices checked on February 1, 2020 and are subject to change without notice!



ADAPTORS

(will adapt spindle nose of F lathe to that of another lathe)

Part Number
Description
9442 U Lathe
9441
HA Lathe



MISCELLANEOUS ACCESSORIES
9296 Standard faceplate, 1" - 16 threads per inch
9330
Outboard spindle nose adaptor
9628-01 Swivel/Stop Mechanism
1617
Spindle closure disc
9345
Felt way wipers, set of four
90068
Foot Pedal Spindle Speed Control
9356 Guide bar & bracket
90067 Remote motor control, Speed-On/Off
90052
Foot Pedal Power On/Off Switch





SPECIAL ORDER ACCESSORIES
COLLET SYSTEMS

REDWOOD

9241
Unbored spindle nose collet
9825 Bored spindle nose collet, specify bore, 6mm - 70mm
9265 Collet protector disc faceplate
2733 Unbored protector disc
9801 Bored protector disc, specify bore, 89 mm max
9221 Spindle nose collet draw-in bar assembly
9230
Collet draw-in bar assembly for outboard spindle nose adaptor
2633 2" adaptor collet, unbored
9401
2" adaptor collet, specify bore, 13mm - 54mm
9406
2" adaptor assembly
9402 3" adaptor collet, unbored
9804
3" adaptor collet, specify bore, 25mm -76 mm
9407 3" adaptor assembly
9415
3" adaptor collet draw-in bar assmbly



Adaptor
Extended
METAL (collets not included in system)
Style Spindle Style

9400-311 9400-111
Hand wheel actuated 5C collet system
9005-421
9005-111 Lever actuated 5C collet system
9595-421
9595-111 Air acutated 5c collet system, headstock (9796 or 9797 required)
9596-421
9596-111
Air actuated 5C collet system, tailstock (9796 or 9797 required)



   Automation Available, Motorized Tailstock, Motorized Firecarriage, Gas Delivery Systems, Fully Programmable Lathe

 5C Collet Systems
Hand Wheel Actuated, Lever Actuated, Air Actuated
Call for Pricing





STEMHEADS AND ACTUATING MECHANISM (Headstock)
9979 2-jaw small
9980
3-jaw small
9981
4-jaw small
9361
Stemhead actuating mechanism (for use on headstock only)
