HSA-R LATHE
Dimensions in millimeters:Spindle bore diameter - 114 Maximum length - (Spindle nose to spindle nose) - 1429 Radial Clearance above heat shield - 232 Radial Clearance above T-slot FC Spindle Speed RPM 10-240 *Pricing is for raw lathe only (no accessories). Prices checked on January 1, 2009 and are subject to change without notice! |
| HSA-R LATHE |

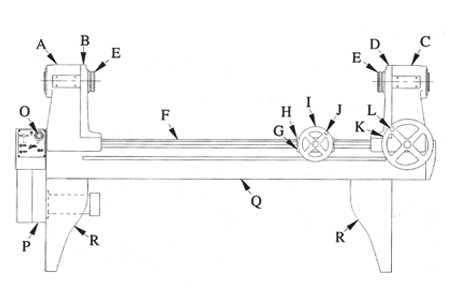

| A = Spindle bore diameter |
| B = Maximum spindle nose to spindle nose distance |
| D = Radial clearance above heat shield |
| E = Radial clearance above T-slot firecarriage cover |
| HSA-R LATHE 67mm (2-5/8") Bore |
||||||
| Part Number |
Electrical |
A |
B | C |
D | List Price |
| HA11-211R |
110/120V 50/60Hz |
67 |
927 |
232 |
190 |
$15,670* |
| HA11-221R |
220V 50/60Hz |
67 |
927 |
232 |
190 |
$15,670* |
| HA11-231R |
240V 50/60Hz |
67 | 927 |
232 |
190 | $15,670* |
|
Dimensions in millimeters, *Pricing is for raw lathe only (no accessories) Prices checked on October 1, 2008 and are subject to change without notice! |
||||||
| FIRE CARRIAGE OPTIONS |
||
| Part Number |
Description | Unit Price |
| 8983R | Remanufactured HS Lathe Firecarriage Assembly |
$1,075 |
| 9674R | Remanufactured Firecarriage Cover & Burner Mount |
$255 |
| 8983 | New HS Lathe Firecarriage Assembly |
$1,345 |
| 9674 | New Firecarriage Cover & Burner Mount |
$315 |
| 9587 | T-Slot Firecarriage Cover & Burner Mount |
$825 |
| 9366-01 |
Rack & Pinion Burner Mount |
$1,345 |
| 9366-11 | Rack & Pinon Burner Mount & T-Slot Cover |
$1,800 |
| Prices checked on October 1, 2008 and are subject to change without notice! | ||
| HS LATHE CHUCK OPTIONS |
||
| Part # |
Description | Unit Price |
| 9273 |
Drill Chuck, 1/32" - 1/2" |
$375 |
| 9424 |
Drill Chuck, 3/16" - 3/4" |
$605 |
| 9432 |
Drill Chuck, 3/16" - 1-1/32" |
$735 |
| 90009-03 | Scroll, 4" Bison, CCW |
$985 |
| 97121-03 | Scroll, 32mm, CW Close |
$1095 |
| 97122-03 | Scroll, 32mm, CCW Close | $1095 |
| 97141-03 |
Scroll, 52mm, CW Close |
$1,755 |
| 97142-03 |
Scroll, 52mm, CWW Close | $1,755 |
| 97023-03 | Scroll, 80mm, CW Close | $2,195 |
| 97024-03 |
Scroll, 80mm, CCW Close |
$2,195 |
| 97035-03 | Scroll, 114mm, CW Close |
$2,745 |
| 97036-03 |
Scroll, 114mm, CCW Close | $2,745 |
| 9781-03 | Air Actuated Chuck, 33mm |
$3,080 |
| 9779-03 |
Air Actuated Chuck, 50mm |
$3,410 |
| 9960 |
Planetary, UC 3-Jaw Chuck |
$1,815 |
| 9961 |
Planetary, EC 3-Jaw Chuck | $2,175 |
| 9968 |
Planetary, HSJ 6-Jaw Chuck |
$4,265 |
| 9332 |
Outboard Spindle Nose Adp |
$325 |
| Prices checked on October 1, 2008 and are subject to change without notice! | ||
| LATHE BENCH OPTIONS |
||
| Part Number |
Description |
Unit Price |
| 9044-05 |
HS Plumbed Bench Mounted | $3,200 |
| 9044-15 |
HS Basic Bench Mounted |
$1,250 |
| Prices checked on October 1, 2008 and are subject to change without notice! | ||
| VALVE & FOOT PEDAL OPTIONS |
||
| Part Number | Description | Unit Price |
| 9051-03 |
Gas-Oxy Proportioner Valve, Installed |
$2,630 |
| 9051 |
Gas-Oxy Proportioner Valve |
$1,950 |
| 9311-02 |
Foot Pedal Mechanism Installed |
$550 |
| 9311 |
Foot Pedal Mechanism |
$395 |
| Prices checked on October 1, 2008 and are subject to change without notice! |
||
