Glassblowing lathes will be found in almost every scientific glassblowing shop. the primary function of the lathe is to hold and rotate glass tubing, rod or glass apparatus during the glass fabrication process. Extremely useul to the scientific glassblower - provides a much wider range of glass manipulation, size and accuracy than normally achieved by hand.

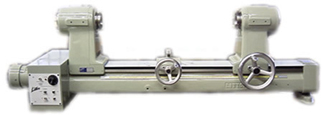

Glass lathes are available as bench or floor models. The head stock is fixed, and usually houses the main controls (on/off, rotational speed). The tail stock moves towards or away from the head stock by way of the larger wheel pictured. This movement is used to gather or take away glass during the fabrication process. The tail stock moves on rails (or ways) that maintain extremely accurate alignment with the head stock.

Spindle Speed: ESA120/ESA194: 5-165rpm / ESA222/ESA278: 5-85rpm
Electrical: 110 - 120 Volts AC / 50 - 60 HZ Single Phase
Infinetly Variable "V" Drive
Spindle On/Off, Speed, Direction Controls
Optional Coax Spindle On/Off & Jog Switch
Remote Control Device Connections
Motorization Options Available
Part No: ESA120

Qty:
Spindle Speed: EE125/EE199: 5-270 rpm, EE227/EE283: 5-100rpm
Electrical: 110 - 120 Volts AC / 50-60 Hz Single Phase

Infinitely Variable "V" Drive
Spindle On/Off, Speed, Direction Controls
Optional Coas Spindle On/Off & Jog Switch
Remote control Device Connections
Motorization Options Available

Part No:

Price:
-Select-
Qty:
Spindle Speed: EJ128/EJ174: 5 - 225rpm
EJ202/EJ286: 5 - 85 rpm
Electrical: 110 - 120 Volts AC / 50-60 Hz Single Phase

Infinitely Variable "V" Drive
Spindle On/Off, Speed, Direction Controls
Optional Coax Spindle On/Off & jog Switch
Remote Control Device Connections
Motorization Options Available

Part No:

Price:
-Select-
Qty:
Spindle Speed: 20 - 400 rpm
Electircal: 100 - 240 Volts AC / 50 - 60 Hz Single Phase

Infintely Variable Speed Drive
Spindle On/Off, Speed, Direction Controls
Optional Tailstock Coax Spindle On/Off
Remote Control Device Connections
Motorization Options Available

Part No: F11-111

Price:
*
F053 STD   ($14,700.00)
F053 COAX   ($16,000.00)
General Features
Precision alignment
Infinitely variable speed spindle drive, On/Off, speed and direction controls
Jog button (Except on Model F053)
Sockets to accommodate remote control devices, and switch for tailstock spindle On/Off
Lathe bed scales
Seals on lathe spindles that make it possible to apply air pressure to the work
Optional swivel/stop system used to deliver both pressure and vacuum directly to the work, accommodating different sized stops
Standard rack-and-pinion firecarriage burner bracket (Models F053 & U077 only)
Part No: HJ

Price:
$29902.00
Qty:
Spindle Speed: 5 - 95rpm
Electircal: 110 - 120 Volts AC / 50 - 60 Hz Single Phase
Motorization Available!
Infinitely Variable "V" Drive
Spindle On/Off, Speed, Direction Controls
Optional Coax Spindle On?Off & Jog Switch
Part No: KB197

Qty:
Designed with the Glassworker in mind!
Lathe can handle up to 67mm Tubing!
Lathe comes with 52mm Scroll Chuck!

Spindle Bore: 67mm
Scroll Chuck Bore: 52mm
Radial Clearance (Spindle bore to ways): 235mm
Radial Clearance (Spindle bore to table top): 298mm
Maximum Operating Speed: 200rpm

Part No: ART-11

Price:
$7550.00
Qty:
Features
67 mm Spindle Bore
52 mm Scroll Chuck Bore
741 mm Between Chuck Faces
175 mm Radial Clearance (spindle bore to firecarriage)
205 mm Radial Clearance (spindle bore to cover plate)
200 rpm Maximum Operating Speed
Part No: ART-21

Price:
$15500.00
Qty:
Spindle Speed: 10 - 300 rpm
Electrical: 110 - 120 Volts AC
50 - 60 Hz Single Plase
Infinitely Variable "V" Drive
Spindle On/Off, Speed, Direction Controls
Tailstock Spindle On/Off & Jog Switch
Remote Control Device Connections
Motorization Options Available
Part No: U11

Price:
$22300.00
Qty:
