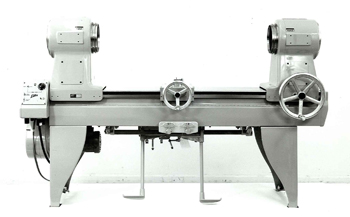

| KB LATHE SPECIFICATIONS |
|
Model KB Lathes have an infinitely variable timing belt drive with the following features: spindle On/Off, speed and direction controls; jog switch for spindles; and sockets which allow connection of remote control devices for control of spindle On/Off and speed functions. An optional tailstock spindle On/Off feature (co-axial) is available for all models. The spindle bore diameter of Model KB Lathes is 260 mm. The KB, KSB and KTB Lathes differ in the radial clearance to the bed. Lathes can be purchased with motorized firecarriage and tailstock; additional sheets for motorized versions are available upon request. Lathe bed scales are a standard feature. Accessories must be ordered separtely. Additonal information on individual accessories can be obtained under each accessory's respective catalog listing. For information on burners and paddles, refer to the Burner section of the catalog. |
| A = Spindle bore diameter |
| B = Maximum spindle nose to spindle nose distance |
| D = Radial clearance above heat shield |
| E = Radial clearance above T-slot firecarriage cover |
| F = Length of spindle |
| G = Firecarriage travel distance |
| H = Overall height |
| I = Height-Floor to Ways |
| J = Overall Length |
| L = Weight/Shipping weight |
| M = Spindle Speed Range |
| KB197 |
KSB197 |
KTB197 |
||
| A = |
mm |
260 |
260 |
260 |
| B = |
mm |
1968 | 1968 |
1968 |
| D = |
mm |
441 | 530 |
619 |
| E = |
mm |
393 |
482 | 571 |
| F = |
mm |
365 | 365 |
365 |
| G = |
mm |
1575 | 1575 |
1575 |
| H= |
mm |
1460 |
1549 |
1638 |
| I = |
mm |
822 |
822 | 822 |
| J = |
mm |
2945 | 2945 | 2945 |
| K = |
mm |
756 |
756 |
756 |
| L = |
~k | 953/1179 | 1043/1270 | 1135/1362 |
| A = |
in | 10-1/4 |
10-1/4 |
10-1/4 |
| B = | in |
77-1/2 |
77-1/2 |
77-1/2 |
| D = |
in |
17-3/8 |
17-3/8 |
17-3/8 |
| E = |
in |
15-1/2 |
19 |
22-1/2 |
| F = |
in |
14-3/8 | 14-3/8 |
14-3/8 |
| G = |
in |
62 |
62 |
62 |
| H= |
in |
57-1/2 | 61 | 64-1/2 |
| I = |
in |
32-3/8 |
32-3/8 |
32-3/8 |
| J = |
in |
112 |
112 |
112 |
| K = |
in |
29-3/4 |
29-3/4 |
29-3/4 |
| L = |
~lb |
2100/2600 |
2300/2800 |
2500/3000 |
|
Spindle speed range 5 to 95 rpm Electrical supply required 110-120V AC, 50-60 Hz single phase Note: Other electrical supplies can be accommodated at extra cost |
||||
| KB LATHES 260mm (10-1/4") Bore |
|||||
|
260mm Spindle bore diameter 365mm Length of spindle 1968mm Overall length D= Radial clearance above heat shield. |
|||||
| MODEL NUMBER |
D | Poly Drive | List Price |
Coax Drive | List Price |
| KB197 | 441 | KB13-111 |
$69,630* |
KB13-211 |
$72,930* |
| KSB197 | 530 |
KB23-111 |
$79,530* |
KB23-211 |
$82,830* |
| KTB197 | 619 |
KB33-112 |
$82,930* |
KB33-211 |
$86,130* |
| *Pricing is for raw lathe only (no accessories). Prices checked on October 1, 2008 and are subject to change without notice! |
|||||
| FIRECARRIAGE COVER AND BURNER MOUNT OPTIONS (Required) |
||
| Lathes can bepurchased with a standard firecarriage cover and standard burner mount or with a T-slot firecarriage cover and/or a rack and pinion burner mount. The desired configuration must be specified. Model numbers are listed below. | ||
| Part Number |
Description | Price |
| 8985 |
K Lathe Firecarriage Assembly |
$1,845* |
| 9676 | Standard Firecarriage Cover & Burner Mount |
$640* |
| 9590 |
T-Slot Firecarriage Cover & Burner Mount |
$1,535* |
| 9369-01 |
Rack & Pinon Burner Mount |
$1,410* |
| 9369-11 |
Rack & Pinon Burner Mount & T-Slot Cover |
$2,360* |
| *Pricing is for raw lathe only (no accessories). Prices checked on October 1, 2008 and are subject to change without notice! |
||
| VALVES AND FOOT PEDAL MECHANISM |
||
| Rotary cock gas-oxy proportioner, volume control and spindle air control |
||
| Part Number |
Description |
Price |
| 9053 | Gas/Oxy Proportioner Vlave |
$2,780* |
| 9316 | Foot Pedal mechanism for 9053 |
$2,000* |
| 9869-03 |
Valve & Foot Pedal Mechanism |
$4,100* |
| 9059-03 |
Small Proportioner Valve & Bracket |
$2,080* |
| 9060-02 |
Large Proportioner Valve & Bracket |
$2280* |
| Piston Type gas-oxy proportioner, volume control valve |
||
| 9059-03 | Small Proportioner Valve and Bracket |
N/A |
| 9060-02 | Large Proportioner Valve and Bracket |
N/A |
| *Pricing is for raw lathe only (no accessories). Prices checked on October 1, 2008 and are subject to change without notice! | ||
| KB LATHE CHUCK OPTIONS |
||
| Chuck measurements listed below reflect their potential based on the dimensions of the KB Lathe. Maximum measurements for all chucks, regardless of the lathe on which they are used, are listed in section 3 of the catalog. For the following chucks: C=Clockwise Close, CC=Counter Clockwise Close |
||
| Part Number |
Description |
Price |
| 9527 |
Drill Chuck 1/32" - 1/2" |
$795* |
| 9528 |
Drill Chuck 3/16" - 3/4" |
$995* |
| 9529 | Drill Chuck 3/16" - 1-1/32" |
$1,100* |
| 9891 |
Planetary Chuck KCB 260mm 3-Jaw |
$7,300* |
| 7578 |
279mm arm rods for KC Chuck, order 3 each |
N/A |
| 80307 |
279 mm arm rod option for KC Chuck |
N/A |
| *Pricing is for raw lathe only (no accessories). Prices checked on October 1, 2008 and are subject to change without notice! |
||
| DRAG BAR & SPINDLE CLOSURE OPTION |
|
| Part Number - Description |
Price |
| 9329-13 Drag Bar, Model KB |
$5,000* |
| 80386 Spindle Closure Disc |
$800* |
| *Pricing is for raw lathe only (no accessories). Prices checked on October 1, 2008 and are subject to change without notice! | |
| ADAPTORS |
|
| Part Number |
Description |
| 9819 | EA,K Lathe |
| MISCELLANEOUS ACCESSORIES |
|
| Part Number | Description |
| 9305 |
Standard faceplate, 89mm bore (3-1/2") |
| 9340 | Outboard spindle nose adaptor |
| 9628-09 | Swivel/Stop Mechanism |
| 80386 | Spindle closure disc |
| 9329-13 | Drag Bar |
| 90066 |
Foot Pedal Spindle On/Off Control |
| 90068 |
Foot Pedal Spindle Speed Control |
| 9594 |
Pyrometer Mount (T-Slot Required) |
| 9807 | Spindle hose nipple |
| 90067 | Remote motor control, Speed On/Off |
| 90052 | Foot Pedal Power On/Off Switch |
